So what info do I need to give you to get a rough estimate of how good or shit it is? Just the measurements of every surface or something?



Could work. I suppose it all depends on the estimated penetration though.

Shoulder diameter, neck diameter, base diameter, rim thickness and case weight or capacity.

Well I see no way of giving you the case weight and capacity.

Do the diameters of the base, shoulder and neck include the case wall or not?

[Aqizithiuda]

Shoulder diameter, neck diameter, base diameter, rim thickness and case weight or capacity.

Well I see no way of giving you the case weight and capacity.

Do the diameters of the base, shoulder and neck include the case wall or not?

They're external diameters.

[Fordorsia]

Well I see no way of giving you the case weight and capacity.

Do the diameters of the base, shoulder and neck include the case wall or not?

They're external diameters.

Shoulder and base 40mm, neck 32mm, rim thickness 3mm. If by base diameter you meant the rim, then that's 40mm.

[Aqizithiuda]

The case needs way more taper.

[Fordorsia]

The case needs way more taper.

Why can't it be straight?

Or do you mean the rim needs to be wider?

[Aqizithiuda]

The case needs way more taper.

Why can't it be straight?

Or do you mean the rim needs to be wider?

Because you need some taper I'm order to extract the round, especially with long, high pressure rounds.

[Fordorsia]

Why can't it be straight?

Or do you mean the rim needs to be wider?

Because you need some taper I'm order to extract the round, especially with long, high pressure rounds.

Base is 40mm, shoulder is 36mm. Better?

[Aqizithiuda]

Because you need some taper I'm order to extract the round, especially with long, high pressure rounds.

Base is 40mm, shoulder is 36mm. Better?

Much.

[Fordorsia]

Base is 40mm, shoulder is 36mm. Better?

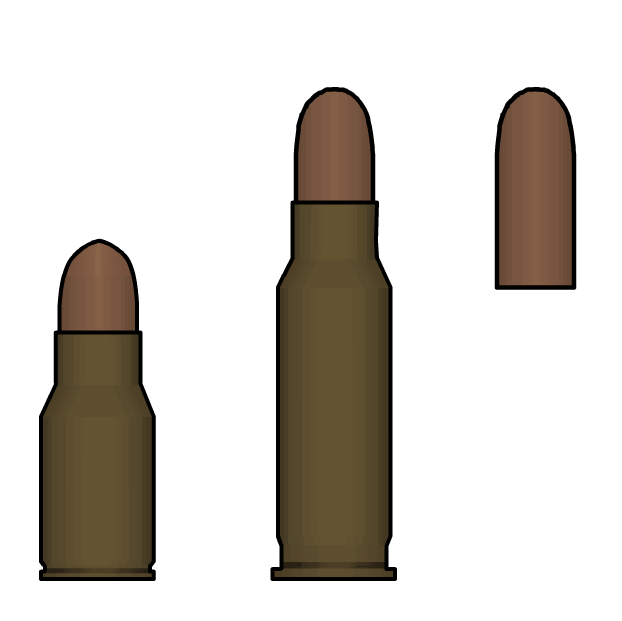

(Image)

Much.

woo

Now do the hard work for me

Hey wait what would knowing the weight of the case do?

[Puzikas]

Volume of case.

[Fordorsia]

Volume of case.

I wont even try to understand how


So what do you think of my squeezebore boolit thing? Is it as bad as I think it is?

[Aqizithiuda]

Much.

woo

Now do the hard work for me

Hey wait what would knowing the weight of the case do?

There's a formula someone derived ages ago that allows you to estimate the volume of a case based on its dimensions, weight of the case and the density of the case material. I don't know how it works, I just know that it works.

[Puzikas]

Assumes homogeneous distribution of material throughout the case for a given mass at given ratios of parts of the case.

Idk how it works either but it works

[Slavtania]

Generally speaking:

APFSDS>APDS>Squeezebore=>APCR>Solid AP.

I figured, its how things worked out IRL, and that shit works out for a reason.

I don't know how it works, I just know that it works.

Praise the Omnissiah.

[Fordorsia]

Assumes homogeneous distribution of material throughout the case for a given mass at given ratios of parts of the case.

yo was that even english?

[Puzikas]

Assumes homogeneous distribution of material throughout the case for a given mass at given ratios of parts of the case.

yo was that even english?

Yes

[Fordorsia]

yo was that even english?

Yes

broken english obv

[Arkandros]

Volume is easy to calculate though! it's two truncated cones and one cylinder, so (using your case and assuming uniform 1mm case thickness) the volume is equivalent to (((1/3)(pi)((19^2)+(19*17)+(17^2))171)+((1/3)(pi)((17^2)+(17*15)+(15^2)12)+((pi)(15^2)16)), for a grand total of ~195,210mm^3 H2O.
Edit: Give me the actual case thickness at the base, shoulder, and neck and I can calculate your actual case capacity, because it obviously isn't 1mm thick everywhere.
Edit2: does anyone actually have a list of standard ratios for case thickness of cartridges? If so, I'd love to see it.

[Spirit of Hope]

Yes

broken english obv

No it was smart English.

[Aqizithiuda]

Volume is easy to calculate though! it's two truncated cones and one cylinder, so (using your case and assuming uniform 1mm case thickness) the volume is equivalent to (((1/3)(pi)((19^2)+(19*17)+(17^2))171)+((1/3)(pi)((17^2)+(17*15)+(15^2)12)+((pi)(15^2)16)), for a grand total of ~195,210mm^3 H2O.
Edit: Give me the actual case thickness at the base, shoulder, and neck and I can calculate your actual case capacity, because it obviously isn't 1mm thick everywhere.
Edit2: does anyone actually have a list of standard ratios for case thickness of cartridges? If so, I'd love to see it.

Most rifle cartridges have a 5mm cartridge web, 0.84mm wall thickness at the base and 0.41mm wall thickness at the shoulder.

The 5.45x39mm apparently has a 4.34 mm cartridge web, 0.74mm wall thickness at the base and 0.31mm wall thickness at the shoulder.
